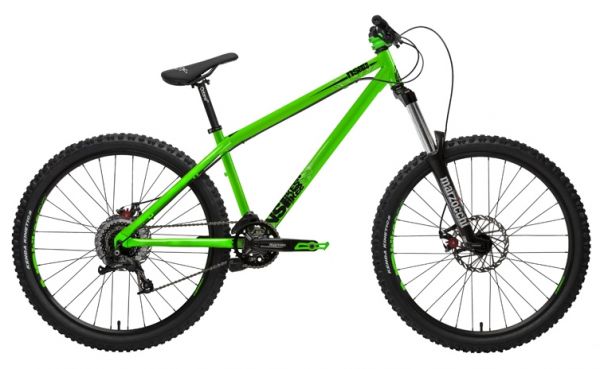

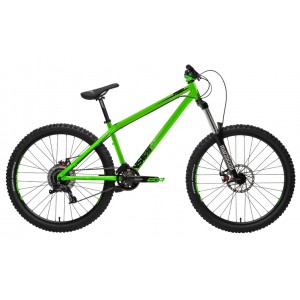

NS Core 1
Freeride
The Core is a true freeride hardtail that will feel great to ride hard on any kind of challenging terrain – from big drops and jumps to long climbs and winding singletrack. We believe that steel is the ideal material for this kind of bike –it’s strong, not prone to catastrophic failure and does not transmit vibrations as harshly as the aluminium in frames that most manufacturers specify. The geometry of the Core is identical to the Surge aftermarket frames. The bike will be stable at high speed and on big airs, but will also allow the rider to pedal back home quite comfortably. And even our hard-core dirt-jumping riders, who tried the Core, reported that they felt totally at home with the riding position. So, if you want a do-it-all hardtail, you should be riding this bike.
The Core 1 is a top-of-the-line freeride machine, packed with a bunch of high-end parts - you will get the new Marzocchi 55RS fork with a custom alloy steer tube for weight saving, Hussefelt cranks, lightweight Kenda tires, Sram X7 1x10 drivetrain, sealed bearing front and rear hubs by Octane One, NS Fundamental rims, and many more great additions, all mounted on the beautiful multi-butted cromoly NS frame.
Frame: NS 100% Cromoly
Fork: Marzocchi 55RS, 160 mm travel, 20 mm axle, alloy steer tube
Headset: Prestine, loose ball
Stem: NS Quark 31.8
Handlebar: NS Terra
Grips: NS Sam Pilgrim signature w/o flange
Brakes: Avid Elixir1 180mm / 180mm
Shifters: SRAM SX5 10spd
Derailleurs: SRAM X7 medium cage rear, 10spd
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Hussefelt, alloy 36t chainring, 175 mm
Chain guide: E13 LS1+
Chain: KMC DX-10-SC
Cassette: Sram PG-1030 9 10 speed 11-36
Rims: NS Fundamental
Hubs: Octane One 20 disk (sealed bearing) front, Octane One cassette w/Q-R rear (sealed bearings, steel cassette)
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Nevegal Stick-E 60tpi, 26x2.35
Seatpost: Octane One 27.2
Saddle: Octane One with hollow cromoly rails
Pedals: NS Aerial
Weight: ~16.4 kg
The Core is a true freeride hardtail that will feel great to ride hard on any kind of challenging terrain – from big drops and jumps to long climbs and winding singletrack. We believe that steel is the ideal material for this kind of bike –it’s strong, not prone to catastrophic failure and does not transmit vibrations as harshly as the aluminium in frames that most manufacturers specify. The geometry of the Core is identical to the Surge aftermarket frames. The bike will be stable at high speed and on big airs, but will also allow the rider to pedal back home quite comfortably. And even our hard-core dirt-jumping riders, who tried the Core, reported that they felt totally at home with the riding position. So, if you want a do-it-all hardtail, you should be riding this bike.
The Core 1 is a top-of-the-line freeride machine, packed with a bunch of high-end parts - you will get the new Marzocchi 55RS fork with a custom alloy steer tube for weight saving, Hussefelt cranks, lightweight Kenda tires, Sram X7 1x10 drivetrain, sealed bearing front and rear hubs by Octane One, NS Fundamental rims, and many more great additions, all mounted on the beautiful multi-butted cromoly NS frame.
Frame: NS 100% Cromoly
Fork: Marzocchi 55RS, 160 mm travel, 20 mm axle, alloy steer tube
Headset: Prestine, loose ball
Stem: NS Quark 31.8
Handlebar: NS Terra
Grips: NS Sam Pilgrim signature w/o flange
Brakes: Avid Elixir1 180mm / 180mm
Shifters: SRAM SX5 10spd
Derailleurs: SRAM X7 medium cage rear, 10spd
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Hussefelt, alloy 36t chainring, 175 mm
Chain guide: E13 LS1+
Chain: KMC DX-10-SC
Cassette: Sram PG-1030 9 10 speed 11-36
Rims: NS Fundamental
Hubs: Octane One 20 disk (sealed bearing) front, Octane One cassette w/Q-R rear (sealed bearings, steel cassette)
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Nevegal Stick-E 60tpi, 26x2.35
Seatpost: Octane One 27.2
Saddle: Octane One with hollow cromoly rails
Pedals: NS Aerial
Weight: ~16.4 kg

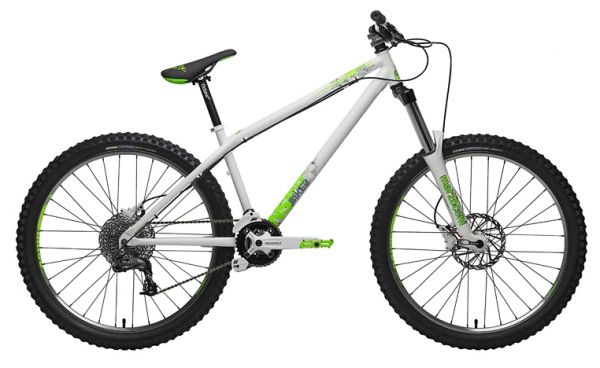

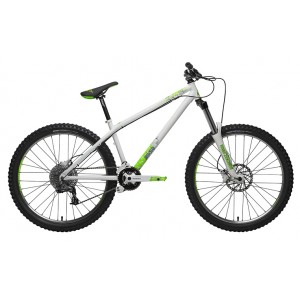

NS Core 2
Freeride
The Core is a true freeride hardtail that will feel great to ride hard on any kind of challenging terrain – from big drops and jumps to long climbs and winding singletrack. We believe that steel is the ideal material for this kind of bike –it’s strong, not prone to catastrophic failure and does not transmit vibrations as harshly as the aluminium in frames that most manufacturers specify. The geometry of the Core is identical to the Surge aftermarket frames. The bike will be stable at high speed and on big airs, but will also allow the rider to pedal back home quite comfortably. And even our hard-core dirt-jumping riders, who tried the Core, reported that they felt totally at home with the riding position. So, if you want a do-it-all hardtail, you should be riding this bike.
The 2012 Core 2 is fitted with a range of NS components such as the Aerial pedals, Terra handlebar, E13 chainguide, all mounted on the beautiful multi-butted cromoly NS frame.
Frame: NS 100% Cromoly
Fork: Marzocchi 55RS, 160mm travel, 20mm axle
Headset: Prestine, loose ball
Stem: NS Quark 31.8
Handlebar: NS Terra
Grips: NS Sam Pilgrim signature w/o flange
Brakes: Avid BB5 180mm / 180mm
Shifters: SRAM SX4
Derailleur: SRAM SX5 medium cage rear
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Ruktion, steel 36t chainring, 175 mm
Chain guide: E13 LS1+
Chain: KMC Z-72
Cassette: Sram PG-830 8 speed 11-32
Rims: NS Fundamental
Hubs: Octane One 20mm (sealed bearing) front, Joytech cassette 10 mm q-r rear
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Kinetics 26x2.35
Seatpost: Octane One 27.2
Saddle: Octane One
Pedals: NS Aerial
Weight: ~16.9 kg
The Core is a true freeride hardtail that will feel great to ride hard on any kind of challenging terrain – from big drops and jumps to long climbs and winding singletrack. We believe that steel is the ideal material for this kind of bike –it’s strong, not prone to catastrophic failure and does not transmit vibrations as harshly as the aluminium in frames that most manufacturers specify. The geometry of the Core is identical to the Surge aftermarket frames. The bike will be stable at high speed and on big airs, but will also allow the rider to pedal back home quite comfortably. And even our hard-core dirt-jumping riders, who tried the Core, reported that they felt totally at home with the riding position. So, if you want a do-it-all hardtail, you should be riding this bike.
The 2012 Core 2 is fitted with a range of NS components such as the Aerial pedals, Terra handlebar, E13 chainguide, all mounted on the beautiful multi-butted cromoly NS frame.
Frame: NS 100% Cromoly
Fork: Marzocchi 55RS, 160mm travel, 20mm axle
Headset: Prestine, loose ball
Stem: NS Quark 31.8
Handlebar: NS Terra
Grips: NS Sam Pilgrim signature w/o flange
Brakes: Avid BB5 180mm / 180mm
Shifters: SRAM SX4
Derailleur: SRAM SX5 medium cage rear
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Ruktion, steel 36t chainring, 175 mm
Chain guide: E13 LS1+
Chain: KMC Z-72
Cassette: Sram PG-830 8 speed 11-32
Rims: NS Fundamental
Hubs: Octane One 20mm (sealed bearing) front, Joytech cassette 10 mm q-r rear
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Kinetics 26x2.35
Seatpost: Octane One 27.2
Saddle: Octane One
Pedals: NS Aerial
Weight: ~16.9 kg

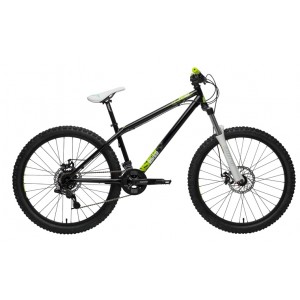

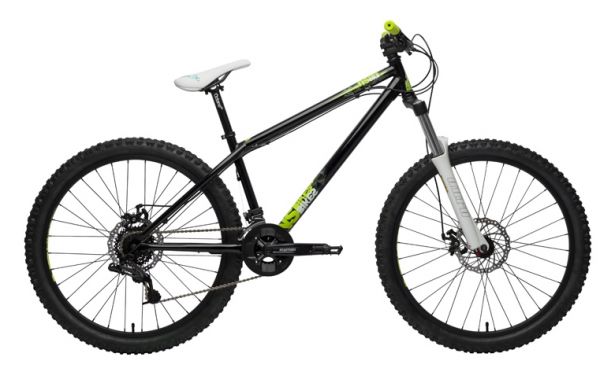

NS Core 3
Freeride
The Core is a true freeride hardtail that will feel great to ride hard on any kind of challenging terrain – from big drops and jumps to long climbs and winding singletrack. We believe that steel is the ideal material for this kind of bike –it’s strong, not prone to catastrophic failure and does not transmit vibrations as harshly as the aluminium in frames that most manufacturers specify. The geometry of the Core is identical to the Surge aftermarket frames. The bike will be stable at high speed and on big airs, but will also allow the rider to pedal back home quite comfortably. And even our hard-core dirt-jumping riders, who tried the Core, reported that they felt totally at home with the riding position. So, if you want a do-it-all hardtail, you should be riding this bike.
Despite the nice price, the Core 3 is loaded with great components – you will find the light NS Quark stem, NS Terra handlebar and Octane One saddle on this bike.
Frame: NS Trimoly (cromoly down tube, top tube and chain stays)
Fork: Suntour Duro DJ D, 130 mm Travel, 10 mm axle
Headset: Prestine, loose ball
Stem: NS Quark 31.8
Handlebar: NS Terra
Grips: NS Sam Pilgrim signature w/o flange
Brakes: Tektro Novela 180 mm / 180 mm
Shifters: SRAM SX4
Derailleurs: SRAM SX3 front / SRAM SX4, medium cage rear
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Ruktion 36/24T,175 mm
Chain: KMC Z-72
Cassette: Sram PG-830 8 speed 11-32
Rims: Jalco DDY
Hubs: Joytech 9 mm q-r front, Joytech cassette 10 mm q-r rear
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Kinetics 26x2.35
Seatpost: Kalloy 25.4
Saddle: Octane One
Pedals: Wellgo with molded pin
Weight: ~17.1 kg
The Core is a true freeride hardtail that will feel great to ride hard on any kind of challenging terrain – from big drops and jumps to long climbs and winding singletrack. We believe that steel is the ideal material for this kind of bike –it’s strong, not prone to catastrophic failure and does not transmit vibrations as harshly as the aluminium in frames that most manufacturers specify. The geometry of the Core is identical to the Surge aftermarket frames. The bike will be stable at high speed and on big airs, but will also allow the rider to pedal back home quite comfortably. And even our hard-core dirt-jumping riders, who tried the Core, reported that they felt totally at home with the riding position. So, if you want a do-it-all hardtail, you should be riding this bike.
Despite the nice price, the Core 3 is loaded with great components – you will find the light NS Quark stem, NS Terra handlebar and Octane One saddle on this bike.
Frame: NS Trimoly (cromoly down tube, top tube and chain stays)
Fork: Suntour Duro DJ D, 130 mm Travel, 10 mm axle
Headset: Prestine, loose ball
Stem: NS Quark 31.8
Handlebar: NS Terra
Grips: NS Sam Pilgrim signature w/o flange
Brakes: Tektro Novela 180 mm / 180 mm
Shifters: SRAM SX4
Derailleurs: SRAM SX3 front / SRAM SX4, medium cage rear
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Ruktion 36/24T,175 mm
Chain: KMC Z-72
Cassette: Sram PG-830 8 speed 11-32
Rims: Jalco DDY
Hubs: Joytech 9 mm q-r front, Joytech cassette 10 mm q-r rear
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Kinetics 26x2.35
Seatpost: Kalloy 25.4
Saddle: Octane One
Pedals: Wellgo with molded pin
Weight: ~17.1 kg
