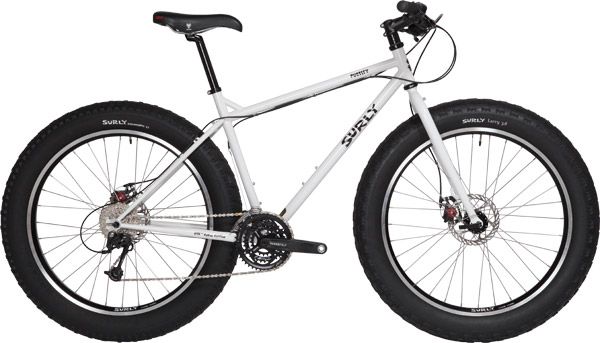

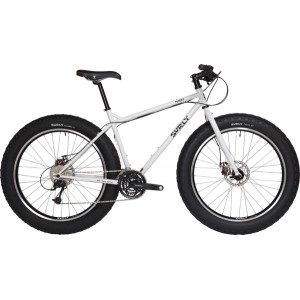

By now, you know that Pugsley was created to go where standard “all terrain” bikes flounder. The floatation and traction afforded by large-volume, low-pressure tires can get you over and through otherwise unrideable terrain…sand, mud, wet rocks and roots, ice and many kinds of snow.

The Pugsley frame has 135mm-spaced horizontal rear-loading dropouts with a derailleur hanger. This means you can set it up with a derailleured drivetrain or an internally-geared hub. Run it with a singlespeed freewheel or a fixed cog. You have lots of drivetrain choices.

The stock fork accepts a 135mm rear mountain hub, just like the frame. This makes it easier to install and remove the wheel (a big tire on a big rim benefits from a wide opening), and it allows front and rear wheel interchangeability. This means you can have the ability to carry another full gear cluster, a singlespeed freewheel, or a fixed cog on the front wheel. And should something go wrong with your primary drivetrain, you have the option of swapping wheels and continuing on your journey or retreating to a place where you can make necessary repairs.

In addition to the frameset, we offer the Pugsley as a complete bike. It features Large Marge rims with Larry and Endomorph tires, plus a nice mix of components chosen for their durability and value.

Surly

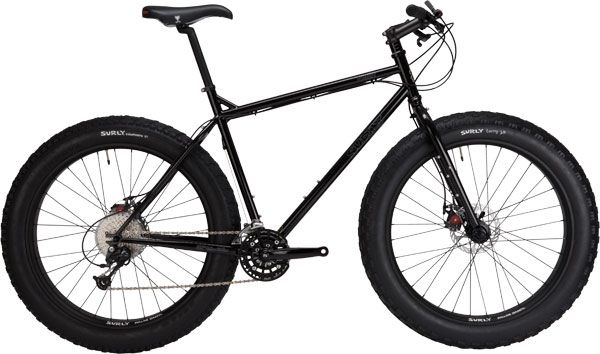

This year, we offer you an alternative to the standard Pugsley. The Neck Romancer Pugsley is the stealth bomber in our fleet. The frame and fork are black with subtle black and gray decals. The rims are black. The spokes are black. Almost everything is black. But this bike isn't just an alternate color version of the standard Pugsley. Where the standard Pugsley sports 65mm-wide Large Marge double-wall rims, the Neck Romancer utilizes our 82mm-wide single-wall Rolling Darryl rims to expand its tire footprint, increasing its traction and all-terrain floatation. The increase in rim width puts the tire closer to the chain, so to avoid chain rub we spec’d this bike with our MWOD rings on a Mr. Whirly crankset. This provides all the chain/tire clearance necessary while retaining low- and mid-range gearing for crawling through the sticky and flying under the radar. The Neck Romancer Pug is available as a complete bike (with a Moonlander fork) and as a frame, no fork. Choose the right one for you from our fat bike fork offerings…or pick something else (there are a few non-Surly options out there) and build up your ride to suit your specific needs.

Surly

Years ago, our Pugsley’s 3.8" Endomorph tires and 65mm-wide Large Marge rims introduced the cycling world to new riding possibilities. Our big tires, run at low pressures, get you over terrain that is difficult or impossible to ride on a ‘regular’ bike. That original Pugsley tire/rim format certainly changed the game, but there are places and conditions that beg for a larger tire footprint. So, to satisfy our cravings for increased traction action, we introduced the 82mm-wide Rolling Darryl rim. Darryl spreads out the tire more than Marge does, effectively presenting more tread to the trail and adding traction potential. Bigger can be better.

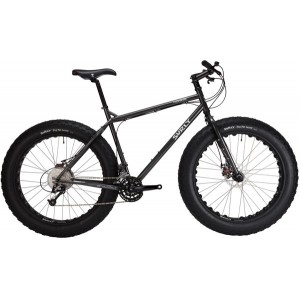

Not wanting to be limited to using the 82mm rim/3.8" tire combo (the largest recommended for the Pugsley), we decided that it was time to raise the bar and develop higher-volume tires, wider rims and a frame to accommodate them. So, this year, we offer you the Big Fat Larry 4.7" tire, the 100mm-wide Clown Shoe rim and, of course, the Moonlander frameset. Like all of our framesets, the Moonlander is made of Surly 4130 CroMoly steel. It features 135mm-spaced, 28mm-offset, rear-loading Surly horizontal dropouts (track ends) with a derailleur hanger…meaning you can set it up as a singlespeed or geared bike, derailleured or internally geared. The bottom bracket height gives you clearance for bushwhacking and monster-trucking. The dropped and gusseted top tube maximizes standover height. And the tallish headtube allows you to set your rig up with a comfortable riding position for those long days grinding out miles in the saddle.

Moonlander’s fork measures 447mm axle-to-crown...same as the Pug, so all of our fat forks are interchangeable between the two models. The disc mount allows you to use a front disc brake caliper with a 135mm O.L.D. rear hub…or with a 135mm-spaced Surly front hub. Mid-blade thru-eyelets and lower rack barrels are included for installing fenders and racks. We offer the Moonlander as a frameset and as a complete bike. The complete bike components were chosen for their durability and their suitability to the task at hand. We chose thumbshifters because they allow you to shift even when wearing mittens. To accommodate the Clown Shoe rim/Big Fat Larry tire spec, the frame design pushes the chainline even farther outboard than that of the Pugsley. So we spec’d Moonlander with our new MWOD crank system. The MWOD (Mr. Whirly Offset Double) ditches the big ring and moves the middle and granny ring outboard. The 2 x 9 drivetrain offers the gear ratios most applicable to a bike of this type while avoiding chain/tire interference. Works like a charm.

If you’ve ever wanted a little more float and traction to get you over the hills and through the woods to Grandmother’s House of Ill Repute and Freestyle Taxidermy, consider the Moonlander.

Surly

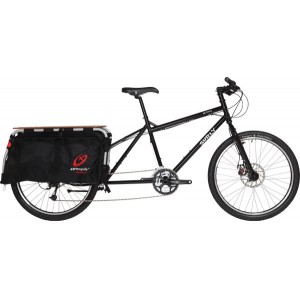

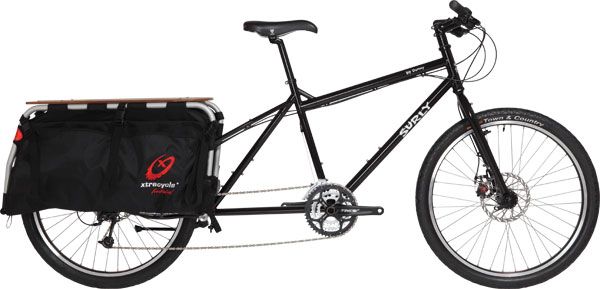

The Big Dummy is designed for carrying cargo. Like all our frames, it’s made of steel and it’s got lots of little touches that you’ve come to love in a Surly, like clearance for bigger tires and common component sizing.

It’s built around the Xtracycle design platform, which means that Xtracycle accessories can be added depending on what you want to carry, or you can build your own to meet whatever hauling need you have. However, being a dedicated single-piece frame instead of an add-on to an existing bike, it’s more stout and resistant to torsional flex, and this makes it resistant to fatigue and failure.

Figure on being able to carry about 200 pounds (90kg) of cargo. The load weight, and how it’s loaded, will affect the handling somewhat. Also plan on using gears, especially as cargo weight increases. This may seem obvious, but as you get comfy with it you’ll use your full range of gears as never before.

One of the funny things about the Big Dummy is that it doesn’t ride quite like you might think. Sure, it’s a little longer, but mainly it rides like a bike. It’s smooth, maneuverable, even nimble. Are you riding light and want to hit some singletrack on the way home? Do it. And if you get a call from your better half asking you to pick up some groceries, or you see a nice lamp at a garage sale, you’re all ready. Lots of people bought one to use once in a while and began using it as their everyday ride.

The frame can be built up lots of different ways to suit your needs and budget. The complete bike option has been reconfigured this year to help keep the price down while still retaining durable, quality components Surly is known for.

Surly

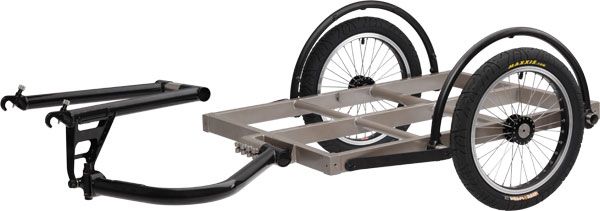

There are quite a few options these days for trailers that carry kids or dogs, luggage, groceries, and other relatively small loads. Trailers are nice because they can be detached when not in use, but most trailers can’t haul much weight and the ones that do suffer some design drawbacks such as incompatibility with many kinds of bikes. Conversely, there are quite a few cargo bikes that can haul bigger loads, but cargo bikes meant for a lot of weight can be difficult to load, are sometimes difficult to ride (sometimes due to the bike’s design, and sometimes due to the sheer weight of the bike itself), and require a lot of space to store. We felt we could help bridge the gap, so we designed two trailers meant to haul a lot, to be easy to use, and which would work with a bike you have already.

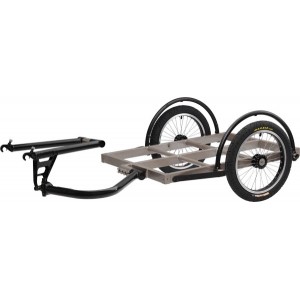

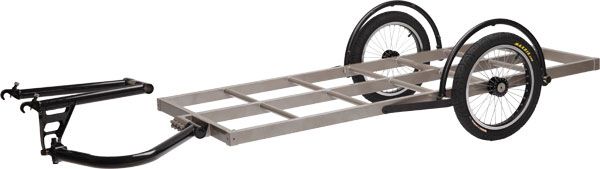

We make two bed lengths so you can find one that suits your needs. Bill is the long one, and Ted is the short bed (get it? Bill has more letters than Ted, so it goes with the longer trailer). The beds and hitch are constructed mainly of TIG-welded 4130 CroMoly steel. CroMoly steel is tough and durable and well-suited to this task. We used 304 stainless steel hardware where appropriate to ensure corrosion resistance and a long life. The beds have threaded eyelets for bolting down decking, corner posts, or creating other custom accessories using readily-accessible materials from your local hardware store, lumberyard or home improvement store.

The wheels are 16", keeping cargo low to the ground. 16" wheels are also stronger than larger diameter wheels favored by many trailers. We designed our own hubs to meet the requirements of this frame. The rims are double-wall with stainless eyelets. The spokes are stainless steel, radially laced. Combined with smooth, easy rolling 1.95" tires, these are stout wheels designed specific to their purpose.

Our hitch system is designed to be as universal as possible. Regardless of the configuration of your bike frame, our hitch will likely fit your bike. It doesn’t clamp to the bike’s frame tubes. Instead, it attaches using a proprietary axle skewer or thread-on axle nuts. The Surly trailer hitch works with full-suspension frames, disc brakes, rear racks and fenders. It adjusts to accommodate hub widths from 120 – 145mm and allows you to align the centerline of the trailer on the centerline of the bike. It will work with bikes that have wheels as small as 20" and as large as 29" while keeping the bed level with the ground. This is especially important when you are hauling long items that hang off the back of the trailer (lumber, tubing, ladders, etc.).

There are some things to learn about using a trailer like this to haul stuff. You’ll probably want to use a bike with gears, for example. As well, learning to load it right becomes more important as cargo weight increases. Load it over the axles, balancing the load. Too much weight on the hitch (tongue weight), or too much weight hanging off the back, and the bike’s handling will be compromised, making it harder to control and potentially damaging your bike, the trailer, or you. Finally, we do not recommend ever carrying people or furry friends on Surly trailers. Sure it might be fun, but someone could get seriously hurt and that’s not fun at all.

The frame is a solid unit constructed of welded CroMoly steel square tubes. The hitch can be adjusted to level the bed, making it easier to carry long items.

The wheel covers keep cargo from shifting into spokes and provide load-bearing support for items that don’t fit between them. Threaded bosses, in the wheel covers, provide mounting points for fenders and spoke guards (not included).

The hitch is highly adjustable to fit most types of bikes and a wide variety of wheel diameters and hub widths.
