Road

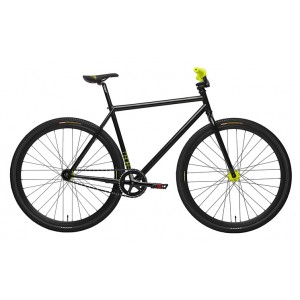

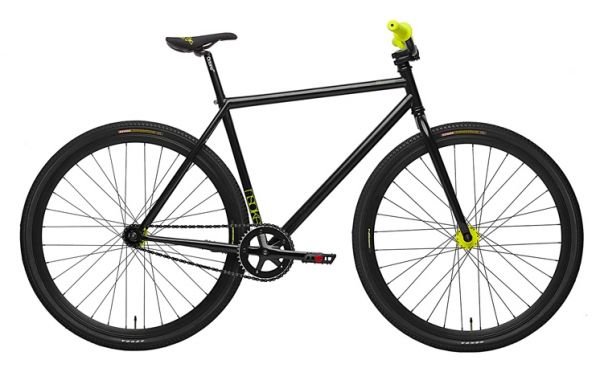

NS Analog

Fixed Gear Freestyle The Analog is a a fixed gear freestyle bike that's very strong, light, and despite being designed primarily for tricks, it's a great bike for commuting. It uses the same tubes as our dirt jumping frames and has the same attention to detail and the same focused design as all our dirt products. The Analog frames will fit tires up to 700x38C and will be barspinable with this size. The geometry is different than that found in traditional track bikes - the length of the top tube will be longer in the corresponding size, and we suggest using shorter stems (40-50mm) to achieve the correct riding position. Frame: NS Analog OEM, full cromoly Fork: NS Analog OEM, full cromoly, 410mm (a-c) Headset: Prestine, loose ball Stem: NS Quark Handlebar: NS Mint, cut to 630mm Grips: NS Sam Pilgrim signature Brakes: Promax RC453 with 249A levers Bottom bracket: TH, square taper Crank: Lasco, 165mm w/ 42T CNC chainring Chain: KMC-510H Cog: 16T (16T freewheel included) Rims: Jalco DRX3000 Hubs: Joytech (loose ball) Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross Tires: Kenda Kwick Trax, 700x38C Seatpost: Kalloy, 27.2 Saddle: Octane One Slim Pedals: Odyssey Twisted PC w/freestyle straps Weight: ~10 kg Note: Bike comes complete with front and rear brakes

Surly Long Haul Trucker

Bicycle touring has been growing in popularity quite a bit in the last decade, and our Long Haul Trucker has been around for most of that time. Over the years it’s developed a devoted following. People understand and appreciate the LHT’s dependability and everyday riding comfort, whether they’re cruising to the store or lost in the middle of nowhere. Why the Trucker? Simple. A touring bike’s job is to go the distance and then some while carrying you and your gear, all in relative comfort. The Long Haul Trucker was designed in all aspects to do exactly that. Its low bottom bracket and long chainstays provide comfort and stability. We gave it ample tire clearance for larger tires (larger tires soak up a lot of road static) with room for fenders too. The frame’s tubing is thicker-walled and larger-diameter than standard road and sport-touring frames, and this pre-tunes it for the weight of cargo. And it’s got all the braze-ons, from rack mounts to water bottle cage bosses to spare spoke holders. Like all our frames, it’s made of CroMoly steel. We like steel for a lot of reasons, foremost among them the ride quality a well-designed steel frame delivers. It doesn’t hurt that steel is relatively inexpensive, or that it is more easily repaired than aluminum, carbon fiber or titanium. You’ll probably never need to have the frame repaired, but if you do you’re more likely to find someone who can weld steel than someone who can weld ti or aluminum. Repair carbon fiber? Good luck with that. The Trucker hasn’t changed much since we introduced it, but we have changed a few things this year, and we expanded the line. Let’s review. First, the rim brake LHT. The original. Designed to be used with cantilever or linear-pull brakes, the standard Long Haul Trucker is available as a frameset and as a complete bike, with 26" wheels in 42–62cm frame sizes, and with 700c wheels in 56–62cm. We’ll also begin offering the 700c in a 64cm. A well designed bike for tall folks at a production frame price ought to make a lot of folks pretty happy. We’re updating the fork too, with custom crown and dropouts. This fork has two sets of eyelets on the dropouts as well as at proper mid-blade height, and 5 x 0.8mm bosses built into the side of the crown. All this makes the fork compatible with most types of racks, and provides options how you can mount racks and carry your stuff. For the components package on the complete bike we chose stuff that’s well suited to the kind of riding this bike is intended for, that’s durable and won’t shoot holes in your wallet. Canti LHT: • 26" wheels available in sizes: 42, 46, 50–62cm completes and framesets • 700c wheels: 56–64cm completes and framesets (64cm in Super Dark Green only) Surly

Surly Disc Trucker

Sometimes a combination of load, climate and terrain demands a bit more braking performance than a rim brake LHT provides. That’s where the Disc Trucker comes in. It’s a Long Haul Trucker with 51mm IS caliper mounts instead of rim brake mounts on the frame and newly redesigned fork. When designing the Disc Trucker we started with a brand new set of rear dropouts which place the caliper mount between the chain and seatstays, providing uncompromising clearance for a rack and fender. Cable/hose routing via our own Trip Guides runs along the downtube. Like the standard LHT, the Disc Trucker is available as a frameset and as a complete bike, with 26" wheels in 42–62cm frame sizes, and with 700c wheels in 56–62cm, the Disc Trucker will also be available in a 64cm, 700c wheel only. Most of the components on the complete bike are the same as the standard LHT, but a couple things are different. We chose Avid BB7 cable operated brakes for their proven reliability and ease of service, and Shimano XT M756 hubs with 6-hole rotor mounts. These hubs are durable and easy to maintain. • 26" wheels available in sizes: 42, 46, 50–62cm completes and framesets • 700c wheels: 56–64cm completes and framesets Surly

Surly Pacer

Behold the Pacer, now also available as a complete bike. For years we sold it only as a frameset. It was understated, didn't draw a lot of attention to itself, but it rode great and people who rode one loved it. The Pacer is not what most race-inspired roadies seem to drool over. It isn’t on the cutting edge of design, it isn't made of the latest ultra light super-expensive materials, and it isn't festooned with lots of bright colors and graphics. Rather, it is a road bike made of our favorite material, cro-moly steel, using frame geometry that makes it fast and efficient like a road bike should be, but it is not a racing bike. This is a frame meant for all day rides. There are a lot of other road frames out there that are flashier, more exotic, and full of promises most riders only dream of fulfilling. The Pacer doesn't make promises. It's simply a great riding steel frame. We decided to offer it as a complete bike to make it easier for folks to try one. It's laterally stiff but vertically compliant, which is just a fancy way of saying it's comfy but responds when you push hard on the pedals. It's got plenty of tire clearance for larger tires than is normal for road frames because larger tires are more comfy. Since tire casings flex before the frame, higher volume tires to take the edge off the bumps and jangles which otherwise can harsh your ride. We gave the complete 28mm tires, a good all around size that will still allow you to add fenders if you like. As you might expect, we built it up with a parts kit that is more than capable but not snobbish or unnecessarily expensive. No, the Pacer will not impress people who live for the next replica team ‘kit.’ The Pacer reminds us, quietly, that there is a road bike out there for the rest of us. Surly

Surly Cross-Check

The Cross-Check is a great bike. It was the third frame we ever offered, and we offered it as a complete bike a year after the introduction of the frame. Neither the frame nor the component spec of the bike have changed much since we introduced it almost a decade ago because…well, why should it? We have made a few changes and updates over the years when those changes were either necessary or just plain a good idea. For instance, this year we’ve added mid-blade eyelets to the fork for mounting a front rack. This isn’t a touring bike per se, but it will handle lighter touring loads, and a front rack can make that easier. But that begs the question: what is this bike for? It’s a cyclocross bike by category, but we try to design a lot of versatility into our stuff. You can build this frame with gears or as a singlespeed or fixed-gear. You can ride it on the road or off. It’s got lots of space for fat tires and for fenders. It does as good a job getting you across the country as it does getting you across town. For the complete bike we picked out components that set the standard for our other completes, stuff that works well and doesn’t dent your piggy bank too bad. The frame is comfy and tough as nails, and versatile too. We continue to hear from people who have made the Cross-Check their default go-to bike simply because it performs so astonishingly well. It’s one of the best riding, most versatile bikes around. Now you’ve heard about it. Go try one. Surly

CX 100

The KHS Cyclocross archetype. As light as you can make them, but still tougher than martian algebra.  Internally-routed housing, treaded tires and disc brakes on a road frame are greater than the sum of its parts. Especially when they are caked in mud and sand. Muddy Specs.

Flite 280 Ladies

Whether you ride full-kit or on your khakis and dockers, this bike will take you from A to B, and to C, even D, without so much as whimper. Great for pack-rides and even the faster-inclined weekend warriors, this bike delivers. But it wouldn't make a very good delivery bike.

Flite 300

You may be asking yourself what the difference is between the Flite 280 and this, the Flite 300. Well, we're glad you asked. Many, many things are different when you step up to the 300. Actually, mostly, it's a carbon fork and better components. So maybe not that much. Specs, to compare.

Flite 300 Ladies

A Flite 300 built with an extra X chromosome in mind. That's right, one for the ladies. Shorter frame with a slightly more aggressive downtube angle, it's a shame they don't make a mens version of the ladies version. And no, we don't care if that doesn't make sense.

Flite 500

A road bike with disc brakes. But it also has a great personality to match. The Flite 500 is high-end awesomeness wrapped in Carbon with Shimano 105 components stuck in everywhere. If this bike were a person it would be...weird looking and probably in significant pain. So good thing its a bike. An awesome bike, at that. Genetically modified specs.

Flite 750

The two sexiest words in the English language: Full. Carbon. The Flite 750 may be the closest thing the bike shop gets to looking at a centerfold with customers around. Shimano 105 throughout and did we mention it was made entirely out of carbon? One more time for the back row: it's full carbon. Specs. Carbon.

Flite 780 Di 2

The Di 2 shifting system by Shimano is the closest thing we mere mortals will get to complete man-and-machine amalgamation. Simply, The Terminator would ride Di 2. Build around this science fiction-mad system is the incredible full carbon Flite 780 frame. Say hasta la vista to mechanical shifting forever. Have you seen these specs?

Flite 100

How many gears does it take to climb a hill? One, if you grunt hard enough. The Flite 100 has a simple, clean design that only a single-speed can allow. So next time you're facing a severe incline, don't shift into a granny gear like these other weaklings, you stand up and grunt your way to the top. And then probably throw up when you get there. Like a boss. Simply, specs.

TR101

Ever been out on a ride, the wind in your moustache and the sun beading off your pale knees and thought: "I would like to live on my bike." Of course you have. Well, the TR101 is built for long-hauls and weeklong forays into the world of pavement, gravelly shoulders and sun-stroked cycle-paths. Now get out there and ride, you nut. And don't come back without a clear bill of mental health. One flew over the cuckoo's specs.

EVO Vantage 5.0

This is the ideal starter road bike for the young, novice or recreational rider. With many sizes available, the Vantage will suit people from small to tall. Fast-rolling 700c wheels and Shimano STI shifting allow the Vantage to pack a lot of punch into a classic road bike package. Perfect for those seeking a quality road bike at a very reasonable price. Start riding yours today! Available in four sizes from small to extra-large. - Compact road frame available in four sizes to fit a wide range of users - Lightweight alloy EN-certified frame and fork - Versatile Shimano A050 14-speed drivetrain - Easy-to-use Shimano thumb shifting - Fast-rolling 700 × 28C Kenda tires

2015 KHS Flite 280 - Ladies

Frame Alloy 6061 w/Custom Formed TT & DT, w/Replaceable Derailleur Hanger
Fork Alloy Straight Blade
Headset Threadless 1-1/8”
Rims Weinmann ZAC1800, Doublewall w/CNC Sidewall
Hubs (F/R) Formula Alloy QR, Cassette rear
Tires CST C740 700X28c
Spokes 14G Black, 28X32
Derailleur, Front Shimano Claris FD-2400, 31.8mm
Derailleur, Rear Shimano Claris RD-2400-SS
Shifters Shimano Claris ST-2400
Chain KMC Z8 w/Missing Link
Crankset Shimano Claris FC-2450, 50/34T, Octalink
BB Shimano ES25 Octalink Cartridge Bearing
Cassette Shimano HG200-8, 12/32T, 8-Speed
Pedals Resin w/Steel Cage
Seatpost KHS Alloy Micro-adjust, 27.2x350mm
Saddle KHS Road Padded, Ladies: KHS Road Ladies Padded
Handlebar Alloy Drop, Compact Bend, 31.8, XS-M: 42, L-XL: 44, Ladies XXS-S: 38
Stem Alloy Threadless, 4 Bolt, 31.8, XS-S; 90, M-L: 100, XL: 120, Ladies XXS-S: 75
Handlebar Tape Cushion Tape
Brake Levers Shimano Claris ST-2400
Brakes Promax RC-483 Dual Pivot, Long Reach
Color Mens: Matte Black, Gloss Red, Ladies: Gloss Teal, Matte Silver
Frame Size XS, S, M, L, XL, Ladies: XXS, XS, S

2015 KHS Flite 300

Frame Alloy 6061 w/Custom Formed Double Butted TT & DT, Bi-Oval Pro Seat Stays, Replaceable Derailleur Hanger
Fork Carbon with Alloy Steerer
Headset FSA IS-3E, Integrated
Rims Weinmann ZAC1800, Dbl.Wall w/CNC Sidewall
Hubs (F/R) Formula Alloy QR, Cassette rear
Tires CST Caldera, C1719, 700X25c
Spokes 14G Black, 24x28
Derailleur, Front Shimano Sora, FD-3500, 31.8mm
Derailleur, Rear Shimano Sora, RD-3500-GS
Shifters Shimano Sora ST-3500
Chain KMC X9 w/Missing Link
Crankset Shimano Sora, FC-3550, 50/34T, 2-Piece, XS: 165, S-M: 170, M/L-XL: 175, Ladies XS: 165, Ladies S: 170
BB Shimano Outboard Bearing
Cassette Shimano HG-2009, 11/32T, 9-Speed
Pedals Resin w/Steel Cage
Seatpost KHS Alloy Micro-adjust, 27.2x350
Saddle KHS Road Padded, Ladies: KHS Ladies Road Padded
Handlebar Alloy Drop, Compact Bend, 31.8, XS-M: 42, M/L-XL: 44, Ladies XS-S: 38
Stem KHS Alloy Threadless, 4 Bolt, 31.8, XS-S: 90M M-M/L: 100, L-XL: 110, Ladies XS-S: 80
Handlebar Tape Cushion Tape
Brake Levers Shimano Sora, ST-3500
Brakes Shimano BR-2400
Color Mens: Gloss Black, Matte White, Ladies: Matte White
Frame Size XS, S, M, M/L, L, XL (XS & XL Black Only), Ladies: XS, S

2015 KHS Flite 300 - Ladies

Frame Alloy 6061 w/Custom Formed Double Butted TT & DT, Bi-Oval Pro Seat Stays, Replaceable Derailleur Hanger
Fork Carbon with Alloy Steerer
Headset FSA IS-3E, Integrated
Rims Weinmann ZAC1800, Dbl.Wall w/CNC Sidewall
Hubs (F/R) Formula Alloy QR, Cassette rear
Tires CST Caldera, C1719, 700X25c
Spokes 14G Black, 24x28
Derailleur, Front Shimano Sora, FD-3500, 31.8mm
Derailleur, Rear Shimano Sora, RD-3500-GS
Shifters Shimano Sora ST-3500
Chain KMC X9 w/Missing Link
Crankset Shimano Sora, FC-3550, 50/34T, 2-Piece, XS: 165, S-M: 170, M/L-XL: 175, Ladies XS: 165, Ladies S: 170
BB Shimano Outboard Bearing
Cassette Shimano HG-2009, 11/32T, 9-Speed
Pedals Resin w/Steel Cage
Seatpost KHS Alloy Micro-adjust, 27.2x350
Saddle KHS Road Padded, Ladies: KHS Ladies Road Padded
Handlebar Alloy Drop, Compact Bend, 31.8, XS-M: 42, M/L-XL: 44, Ladies XS-S: 38
Stem KHS Alloy Threadless, 4 Bolt, 31.8, XS-S: 90M M-M/L: 100, L-XL: 110, Ladies XS-S: 80
Handlebar Tape Cushion Tape
Brake Levers Shimano Sora, ST-3500
Brakes Shimano BR-2400
Color Mens: Gloss Black, Matte White, Ladies: Matte White
Frame Size XS, S, M, M/L, L, XL (XS & XL Black Only), Ladies: XS, S

2015 KHS Flite 450

Frame Alloy 6061 w/Custom Formed Double Butted TT & DT, Bi-Oval Pro Seat Stays, Replaceable Derailleur Hanger, Disc Tabs
Fork Carbon with Alloy Steerer & Disc Tabs
Headset FSA IS-3E, Integrated
Rims Weinmann ZAC1800, Double Wall
Hubs (F/R) Formula Alloy QR Disc, Cassette rear
Tires CST Caldera, C1719, 700X25c
Spokes 14G Black, 24x28
Derailleur, Front Shimano Tiagra, FD-4600, 31.8
Derailleur, Rear Shimano Tiagra, RD-4601-SS
Shifters Shimano Tiagra, ST-4600, 10-Speed
Chain KMC X10
Crankset Shimano FC4650 Tiagra, 50/34, XS: 165, S-M: 170, M/L-L: 175, Ladies XS-S: 170
BB Shimano Outboard Bearing
Cassette Shimano CS-4600 Tiagra, 12/30T, 10-Speed
Pedals Resin w/Steel Cage
Seatpost Q2 Carbon Micro-adjust, 27.2x350mm
Saddle KHS Road Padded, Ladies: KHS Sport Road Ladies Padded
Handlebar Alloy Drop, Compact Bend, 31.8, XS-M: 42cm, M/L-L: 44cm, Ladies XS-S: 38cm
Stem KHS Alloy 3D Forged, Threadless 4 Bolt, 31.8, XS-S; 90, M-M/L: 100, L: 110, Ladies XS-S: 80
Handlebar Tape Cushion Tape
Brake Levers Shimano Tiagra, ST-4600
Brakes Tektro Mira Mechanical Disc Brake w/160mm Rotors
Color Mens: Gloss Gray, Ladies: Steel Gray
Frame Size XS, S, M, M/L, L, Ladies: XS, S

2015 KHS Flite 450 - Ladies

Frame Alloy 6061 w/Custom Formed Double Butted TT & DT, Bi-Oval Pro Seat Stays, Replaceable Derailleur Hanger, Disc Tabs
Fork Carbon with Alloy Steerer & Disc Tabs
Headset FSA IS-3E, Integrated
Rims Weinmann ZAC1800, Double Wall
Hubs (F/R) Formula Alloy QR Disc, Cassette rear
Tires CST Caldera, C1719, 700X25c
Spokes 14G Black, 24x28
Derailleur, Front Shimano Tiagra, FD-4600, 31.8
Derailleur, Rear Shimano Tiagra, RD-4601-SS
Shifters Shimano Tiagra, ST-4600, 10-Speed
Chain KMC X10
Crankset Shimano FC4650 Tiagra, 50/34, XS: 165, S-M: 170, M/L-L: 175, Ladies XS-S: 170
BB Shimano Outboard Bearing
Cassette Shimano CS-4600 Tiagra, 12/30T, 10-Speed
Pedals Resin w/Steel Cage
Seatpost Q2 Carbon Micro-adjust, 27.2x350mm
Saddle KHS Road Padded, Ladies: KHS Sport Road Ladies Padded
Handlebar Alloy Drop, Compact Bend, 31.8, XS-M: 42cm, M/L-L: 44cm, Ladies XS-S: 38cm
Stem KHS Alloy 3D Forged, Threadless 4 Bolt, 31.8, XS-S; 90, M-M/L: 100, L: 110, Ladies XS-S: 80
Handlebar Tape Cushion Tape
Brake Levers Shimano Tiagra, ST-4600
Brakes Tektro Mira Mechanical Disc Brake w/160mm Rotors
Color Mens: Gloss Gray, Ladies: Steel Gray
Frame Size XS, S, M, M/L, L, Ladies: XS, S

2015 KHS Flite 500

Frame Alloy 6061 w/Custom formed Double Butted TT & DT, Bi-Oval Pro Seat Stays, Replaceable Derailleur Hanger
Fork Carbon with Alloy Steerer
Headset FSA IS-3E, Integrated
Rims Q2 AR500 Lightweight Wheelset, Double Wall
Hubs (F/R) Q2 AR500 Wheelset, S/B Super Light, Straight pull QR, Cassette rear
Tires Maxxis Detonator, 700x25C, 60TPI, Folding
Spokes Q2 AR500 Wheelset, 14G Black, 20X24, W/Alloy Nipples
Derailleur, Front Shimano 105 FD-5800, 31.8
Derailleur, Rear Shimano 105 RD-5800
Shifters Shimano 105 ST-5800
Chain Shimano 105 CN-5800
Crankset Shimano FC5800 105, Outboard Bearing, 52x36 Mid Compact, w/CNC Outer C/R, XS: 165mm, S: 170mm, M: 172.5mm, L-XL: 175mm
BB Shimano Outboard Bearing
Cassette Shimano CS-5800, 11-32, 11-Speed
Pedals N/A
Seatpost Q2 Carbon Micro-adjust, 27.2x350mm
Saddle KHS Sport Road, Ladies: KHS Sport Road Ladies
Handlebar Ritchey Comp Curve, 31.8, XS-M/L: 42, L-XL: 44
Stem Ritchey 4-Axis 31.8mm, 7 Degree, XS-S: 90mm, M-L: 100mm, XL: 110mm, Ladies XS: 80mm
Handlebar Tape Cushion Tape
Brake Levers Shimano 105 ST-5800
Brakes Shimano BR561, w/Cartridge Pads
Color Mens: Matte Charcoal Gray, Gloss Red, Ladies: Matte Black
Frame Size Mens: XS, S, M, M/L, L, XL (Gray S, M, M/L, L only), Ladies: XS

2015 KHS Flite 750

Frame KHS Full MSD Carbon Monocoque w/Replaceable Derailleur Hanger, PF-30, Tapered Headset
Fork KHS Performance Full Carbon, 1.5 Taper, W/Alloy Dropout
Headset FSA Orbit C40-ACB, N.42/ACB, 1-1/8”~1.5” Integrated Alloy Cap
Rims Q2 AR500 Lightweight Wheelset, Double Wall
Hubs (F/R) Q2 AR500 Wheelset, S/B Super Light, Straight pull QR, Cassette rear
Tires Maxxis Detonator 700X25C, 60TPI, Folding
Spokes Q2 AR500 Wheelset, 14G Black, 20X24, W/Alloy Nipples
Derailleur, Front Shimano 105 FD-5800
Derailleur, Rear Shimano 105 RD-5800
Shifters Shimano 105 ST-5800
Chain Shimano 105 CN-5800
Crankset Shimano FC5800 105, Outboard Bearing, 52x36T, Mid Compact, w/CNC Outer C/R, XS: 165, S: 170, M: 172.5, L-XL: 175
BB Shimano Outboard Bearing
Cassette Shimano CS-5800, 11/32T, 11-Speed
Pedals N/A
Seatpost Q2 Carbon, 27.2x350
Saddle KHS Performance Road/CrMo Rail, Ladies: KHS Sport Road Ladies, CrMo Rail
Handlebar Richey COMP Curve Alloy, 31.8, XS-M: 42cm, L-XL: 44cm, Ladies: 38cm
Stem Ritchey 4-Axis 31.8, XS-S: 90mm, M-L: 100mm, XL: 110mm
Handlebar Tape Cushion Tape
Brake Levers Shimano 105, ST-5800
Brakes Shimano BR-561, w/Cartridge Pads
Color Mens: Matte Black, Ladies: Gloss Black
Frame Size Mens: XS, S, M, L, XL, Ladies: XS, S

2015 KHS Flite 750 - Ladies

Frame KHS Full MSD Carbon Monocoque w/Replaceable Derailleur Hanger, PF-30, Tapered Headset
Fork KHS Performance Full Carbon, 1.5 Taper, W/Alloy Dropout
Headset FSA Orbit C40-ACB, N.42/ACB, 1-1/8”~1.5” Integrated Alloy Cap
Rims Q2 AR500 Lightweight Wheelset, Double Wall
Hubs (F/R) Q2 AR500 Wheelset, S/B Super Light, Straight pull QR, Cassette rear
Tires Maxxis Detonator 700X25C, 60TPI, Folding
Spokes Q2 AR500 Wheelset, 14G Black, 20X24, W/Alloy Nipples
Derailleur, Front Shimano 105 FD-5800
Derailleur, Rear Shimano 105 RD-5800
Shifters Shimano 105 ST-5800
Chain Shimano 105 CN-5800
Crankset Shimano FC5800 105, Outboard Bearing, 52x36T, Mid Compact, w/CNC Outer C/R, XS: 165, S: 170, M: 172.5, L-XL: 175
BB Shimano Outboard Bearing
Cassette Shimano CS-5800, 11/32T, 11-Speed
Pedals N/A
Seatpost Q2 Carbon, 27.2x350
Saddle KHS Performance Road/CrMo Rail, Ladies: KHS Sport Road Ladies, CrMo Rail
Handlebar Richey COMP Curve Alloy, 31.8, XS-M: 42cm, L-XL: 44cm, Ladies: 38cm
Stem Ritchey 4-Axis 31.8, XS-S: 90mm, M-L: 100mm, XL: 110mm
Handlebar Tape Cushion Tape
Brake Levers Shimano 105, ST-5800
Brakes Shimano BR-561, w/Cartridge Pads
Color Mens: Matte Black, Ladies: Gloss Black
Frame Size Mens: XS, S, M, L, XL, Ladies: XS, S

2015 KHS K90 Flite 900

Frame KHS High Modulus T800 Full MSD Carbon Monocoque, PF-30, 1-1/8-1.5 Taper, Replaceable Derailleur Hanger
Fork KHS Pro Full Carbon, 1.5 Taper, W/Alloy Dropout
Headset FSA Orbit C-40-CF-ACB, N.42CF, 1-1/8”~1.5” Integrated, Carbon Cap
Rims Q2 Super Light Elite R23 Wheel Set
Hubs (F/R) Q2 Super Light Elite R23 Straight Pull, QR, Cassette rear, Wheel Set
Tires Maxxis Courchevel, 700X23C, 120TPI, Folding
Spokes Q2 Super Light Elite R23 DB Bladed Straight Pull, Wheel Set
Derailleur, Front Shimano Ultegra, FD-6800
Derailleur, Rear Shimano Ultegra, RD-6800
Shifters Shimano Ultegra, ST-6800
Chain Shimano Ultegra, CN-6800, 11-Speed
Crankset Shimano Ultegra, FC-6800, 53/39T, XS: 165, S: 170, M-L: 172.5, XL: 175
BB FSA EE113, PF30 Reducer
Cassette Shimano CS-5800, 11-25, 11-Speed
Pedals N/A
Seatpost FSA SLK Carbon w/20mm Setback, 31.6x350
Saddle Velo Lightweight Road, CrMo Rail
Handlebar FSA Energy Compact, 31.8, XS: 40cm, S-M: 42cm, L-XL: 44cm
Stem FSA Energy, 31.8, XS: 80mm, S: 90mm, M: 100mm, L-XL: 110mm
Handlebar Tape Anti-Slip Cushion Tape
Brake Levers Shimano Ultegra, ST-6800
Brakes Shimano BR561 w/Cartridge Pads
Color Matte Black
Frame Size XS, S, M, L, XL

2015 KHS Flite 223

Frame CrMo Double Butted, Rear Triangle HT Steel w/Carrier Bosses
Fork Hi-Tensile Unicrown w/CrMo Steerer
Headset Threadless 1-1/8”
Rims Weinmann ZAC1800, Doublewall w/CNC Sidewall
Hubs (F/R) Formula Alloy QR, Cassette rear
Tires CST C740, 700X28c
Spokes 14G Black, 28x32
Derailleur, Front Shimano Claris FD-2403, 28.6
Derailleur, Rear Shimano Claris RD-2400-GS
Shifters Shimano Clais ST-2400, Triple
Chain KMC Z8 w/Missing Link
Crankset Shimano FC-A073, 50/39/30T, S-XL: 170, Ladies: XS: 165, Ladies S: 170
BB Cartridge Bearing
Cassette Shimano HG200-8, 12-32, 8-speed
Pedals Resin w/Steel Cage
Seatpost KHS Alloy Micro-adjust, 26.0x350
Saddle KHS Road Padded, Ladies: KHS Road Ladies Padded
Handlebar Alloy Drop, Compact Bend, 31.8mm
Stem Alloy Threadless, 4 Bolt, 31.8mm
Handlebar Tape Cushion Tape
Brake Levers Shimano Claris ST-2400, Triple
Brakes Promax RC-483 Dual Pivot, Long Reach
Color Mens: Gloss Gray, Ladies: Gloss Black
Frame Size S, M, L, XL, Ladies: XS, S

2015 KHS Flite 223 - Ladies

Frame CrMo Double Butted, Rear Triangle HT Steel w/Carrier Bosses
Fork Hi-Tensile Unicrown w/CrMo Steerer
Headset Threadless 1-1/8”
Rims Weinmann ZAC1800, Doublewall w/CNC Sidewall
Hubs (F/R) Formula Alloy QR, Cassette rear
Tires CST C740, 700X28c
Spokes 14G Black, 28x32
Derailleur, Front Shimano Claris FD-2403, 28.6
Derailleur, Rear Shimano Claris RD-2400-GS
Shifters Shimano Clais ST-2400, Triple
Chain KMC Z8 w/Missing Link
Crankset Shimano FC-A073, 50/39/30T, S-XL: 170, Ladies: XS: 165, Ladies S: 170
BB Cartridge Bearing
Cassette Shimano HG200-8, 12-32, 8-speed
Pedals Resin w/Steel Cage
Seatpost KHS Alloy Micro-adjust, 26.0x350
Saddle KHS Road Padded, Ladies: KHS Road Ladies Padded
Handlebar Alloy Drop, Compact Bend, 31.8mm
Stem Alloy Threadless, 4 Bolt, 31.8mm
Handlebar Tape Cushion Tape
Brake Levers Shimano Claris ST-2400, Triple
Brakes Promax RC-483 Dual Pivot, Long Reach
Color Mens: Gloss Gray, Ladies: Gloss Black
Frame Size S, M, L, XL, Ladies: XS, S

2015 KHS Flite Team

Frame KHS High Modulus Full Carbon Monocoque, PF-30, 1-1/8-1.5, Replaceable Derailleur Hanger Rear Shock N/A
Fork KHS Pro, Full Carbon Monocoque
Headset FSA Orbit C-40-CF-ACB, N.42CF, 1-1/8"~1.5" Integrated Carbon Cap, 5mm x 2, 10mm x 1, CARBON
Rims Shimano Dura-Ace Wheel EWH9000C24-FRLX, Tubeless Compatible
Hubs (F/R) Shimano Dura-Ace
Tires Hutchinson Fusion 3, 700x23c, Kevlar Bead
Spokes Shimano Dura-Ace
Derailleur, Front Shimano Dura-Ace
Derailleur, Rear Shimano Dura-Ace
Shifters Shimano Dura-Ace
Chain Shimano Dura-Ace
Crankset Shimano Dura-Ace XS : 53/39x165, S: 53/39x170, M/ML: 53/39x172.5, L/XL: 53/39x175
BB Praxis Adaptor
Cassette Shimano Dura-Ace, CS9000, 11-25, 11-speed
Pedals N/A
Seatpost FSA SLK Carbon w/20mm Setback, 31.6X350
Saddle Velo VL-1200U Ultra Light w/Carbon Base & Carbon Rail
Handlebar FSA SL-K Carbon Compact XS:400mm, SM:420mm,ML-XL:440mm 31.8
Stem FSA Energy, OS-99, 31.8, XS:80mm, S:90mm, MML:100mm, L-XL:110mm
Handlebar Tape Cushion Tape
Brake Levers Shimano Dura-Ace
Brakes Shimano Dura-Ace
Color Team
Frame Size XS, S, M, L, XL

2015 KHS Flite 100 - Single Speed

Frame 4130 Double Butted full CrMo ,w/KHS Stainless Steel cable clamps, ZH2B frame
Fork Full CrMo Track, 1-1/8"
Headset Threadless, 1-1/8"
Rims Weinmann Win 18, Alloy Doublewall, 30mm Deep
Hubs (F/R) Alloy Flip-Flop w/Track axles
Tires Maxxis Courchevel 700x23c, 120TPI Folding
Spokes 14G Stainless Steel, 32X32
Derailleur, Front N/A
Derailleur, Rear N/A
Shifters N/A
Chain KMC Z33
Crankset Alloy Forged Track, 165mm x 44T
BB FSA Sealed Cartridge
Cog Q2 CrMo 16T, 1/2x3/32
Pedals Alloy Road w/Metal Clip and Leather Strap
Seatpost Alloy Micro-adjust, 26.8x250mm
Saddle KHS Sport Road
Handlebar Alloy Track Bend, 26.0, 42cm
Stem Alloy 3D Forged, 4 Bolt, 51: 90, 53-55: 100, 57-60: 110
Handlebar Tape Cushion Tape
Brake Levers Alloy Shorty Top Mount, Right Only
Brakes Promax RC462 Dual Pivot, Rear Only
Color Matte Black
Frame Size 51, 53, 55, 57, 60cm

Flite 100

Speeds Fixed gear 1-Speed Frame Reynolds 520 Double Butted full Chromoly ,w/Stainless steel cable guides Fork Full CrMo track Headset Threadless 11/8" Rims Q2 AT30 Wheelset, Alloy, Doublewall Hub, Front Q2 Alloy Track Hub, Rear Q2 Alloy Flip-Flop Track Tires Kenda Kotender, 700x23c, 60 TPI folding Spokes 14G Black 32X32 Derailleur, Front N/A Derailleur, Rear N/A Shifters N/A Chain KMC Z33 Crankset Alloy forged track, 165mm x 44T BB Sealed Cartridge Freewheel / Cassette Q2 CrMo 16T, 1/2x3/32 Pedals Alloy road w/metal clip and leather strap Seatpost Alloy micro-adjust, 26.8x250mm Saddle KHS Sport Road Handlebar Alloy Track Bend, 26.0, 42mm Stem Alloy 3D Forged Grips Cushion Tape Brake Levers Alloy shorty top mount, right only Brakes Alloy dual pivot, rear only Colour Matte Black, Gloss Navy

Flite Team

Frame New Design KHS High Modulus T800 MSD Full Carbon Monocoque, PF-30, 1-1/8-1.5 Taper, Replaceable Derailleur Hanger Rear Shock N/A Fork New Design KHS Pro Full Carbon, 1.5 Taper Headset FSA Orbit C-40-CF-ACB, N.42CF, 1-1/8"~1.5" Integrated, Carbon Cap Rims Shimano RS-81 Wheel Set, Carbon/Alloy, Tubeless Compatible Hub, Front Shimano RS-81 Wheel Set Hub, Rear Shimano RS-81 Wheel Set Tires Maxxis Courcheval, 700X23C, 120TPI, Folding Spokes Shimano RS-81 Wheel Set Derailleur, Front Shimano 11s Dura Ace FD9000, 34.9 Clamp Derailleur, Rear Shimano 11s Dura Ace, RD9000 Shifters Shimano 11s Dura Ace, ST9001 Chain Shimano 11s Dura Ace, CN9000 Crankset Shimano Dura Ace, 53/39, XS: 165, S:170, M-:172.5, L-XL: 175 BB Praxis Adaptor Freewheel / Cassette Shimano CS-6800, 11-25, 11-speed Pedals N/A Seatpost FSA SLK Carbon w/20mm Setback, 31.6X350mm Saddle Velo VL-1557 Ultra Light w/Carbon Base & Carbon Rail Handlebar FSA SL-K Compact Carbon, 31.8, XS: 40cm S-M: 42cm, L-XL: 44cm Stem FSA SL-K, 3D Forged, 31.8, XS: 80mm, S:90mm, M:100mm, L-XL: 110mm Grips Anti Slip Cushion Tape Brake Levers Shimano Dura Ace Brakes Shimano BR-6810 Direct Mount w/Cartridge Pads Color Team Frame Size XS, S, , M, L , XL

Flite 700

Frame KHS Full MSD Carbon Monocoque w/Replaceable Derailleur Hanger, PF-30, Tapered Headset Rear Shock N/A Fork Carbon with Alloy Steerer Headset FSA Orbit C40-ACB, N.42/ACB, 1-1/8"~1.5" Integrated Alloy Cap Rims Q2 AR500 Light-weight Wheelset, Double Wall Hub, Front Q2 AR500 Wheelset, S/B Super Light, Straight Pull, QR Hub, Rear Q2 AR500 Wheelset, S/B Super Light, Straight pull QR, Cassette Tires Maxxis Columbiere, 700x25C, 120TPI, Folding Spokes Q2 AR500 Wheelset, 14G Black, 20X24, W/Alloy Nipples Derailleur, Front Shimano FD4700 New Tiagra, 31.8 Clamp Derailleur, Rear Shimano RD4700SS New Tiagra Shifters Shimano ST4700 New Tiagra Chain KMC X10 Crankset Shimano FC4700 Tiagra, 50/34, XS:165mm S-M: 170mm ML-L: 172.5mm XL: 175mm BB Shimano Outboard Bearing Freewheel / Cassette Shimano CS-4600 Tiagra, 12/30T, 10speed Pedals N/A Seatpost Q2 Carbon Micro-adjust, 27.2x350mm Saddle KHS Performance Road Handlebar Alloy Drop, Compact Bend, 31.8, XS-ML: 42cm L-XL: 44cm Stem Alloy 3D Forged, Threadless 4 Bolt, 31.8, XS-S: 90mm M-L: 100mm XL: 110mm Grips Cushion Tape Brake Levers Shimano ST4700 New Tiagra Brakes Shimano BR-4700 Color Black Frame Size XS, S, M, ML, L, XL

Flite 747

Frame Reynolds 520 D/Butted, T/T, 38.1, D/T 40.0, S/T:32.4 Rear Shock N/A Fork Full CrMo Headset Heavy Duty Threadless Rims Weinmann XP Elite, Double Wall, 36H Hub, Front Formula alloy QR Hub, Rear Formula alloy QR, Cassette Tires Maxxis Detonator 700X28c Spokes 14G Black, 36X36 Derailleur, Front Shimano 105 FD5800, 31.8 Clamp Derailleur, Rear Shimano 105 RD5800 Shifters Shimano 105 ST5800 Chain Shimano CN-HG600 Crankset KHS 210mm, 2pc Forged w/Outboard Bearing, 52X36 Mid Compact, 200mm BB Outboard cartridge bearing Freewheel / Cassette Shimano CS5800, 11-32, 11speed Pedals Monoblock Alloy w/Toe Clips & Straps Seatpost Q2 Alloy, 29.8x400mm Saddle KHS Sport Road Handlebar FSA Gossamer, 46cm, Drop: 150mm, Reach: 80mm, 31.8 Stem FSA GOSSAMER Forged Alloy 31.8, 130mm Grips Cushion Tape Brake Levers Shimano 105 Brakes Shimano 105, BR-5800 w/Cartridge Pads Color Black Frame Size 2XL:64cm, 3XL:66cm

Flite 750

Frame KHS Full MSD Carbon Monocoque w/Replaceable Derailleur Hanger, PF-30, Tapered Headset Rear Shock N/A Fork KHS Performance Full Carbon, 1.5 Taper, W/Alloy Dropout Headset FSA Orbit C40-ACB, N.42/ACB, 1-1/8"~1.5" Integrated Alloy Cap Rims Q2 AR500 Light-weight Wheelset, Double Wall Hub, Front Q2 AR500 Wheelset, S/B Super Light, Straight Pull, QR Hub, Rear Q2 AR500 Wheelset, S/B Super Light, Straight pull QR, Cassette Tires Maxxis Columbiere, 700x25C, 120TPI, Folding Spokes Q2 AR500 Wheelset, 14G Black, 20X24, W/Alloy Nipples Derailleur, Front Shimano 105 FD5800, 34.9 Clamp Derailleur, Rear Shimano 105 RD5800 Shifters Shimano 105 ST5800 Chain Shimano 105 CN5800 Crankset Shimano FC5800 105, Outboard Bearing, 52x36 Mid Compact, w/CNC Outer C/R, XS: 165mm S: 170mm M-ML: 172.5mm L-XL: 175mm BB Shimano Outboard Bearing Freewheel / Cassette Shimano CS5800, 11/32 11speed Pedals N/A Seatpost Q2 Carbon, 27.2X350mm Saddle KHS Performance Road/CrMo Rail Handlebar Richey COMP Curve Alloy, 31.8, XS-ML: 42cm L-XL: 44cm Stem Ritchey 4-Axis 31.8, XS-S: 90mm M-L: 100mm XL: 110mm Grips Cushion Tape Brake Levers Shimano 105 Brakes Shimano 105, BR-5800 w/Cartridge Pads Color Silver Frame Size XS, S, , M, L , XL

Flite 900

Frame New Design KHS High Modulus T800 MSD Full Carbon Monocoque, PF-30, 1-1/8-1.5 Taper, Replaceable Derailleur Hanger Rear Shock N/A Fork New Design KHS Pro Full Carbon, 1.5 Taper Headset FSA Orbit C-40-CF-ACB, N.42CF, 1-1/8"~1.5" Integrated, Carbon Cap Rims Shimano WH-RS330 Wheelset Hub, Front Shimano WH-RS330 Wheelset Hub, Rear Shimano WH-RS330 Wheelset Tires Maxxis Courcheval, 700X23C, 120TPI, Folding Spokes Shimano WH-RS330 Wheelset Derailleur, Front Shimano Ultegra, FD6800, 34.9 Clamp Derailleur, Rear Shimano Ultegra, RD6800SS Shifters Shimano Ultegra, ST6800 Chain Shimano Ultegra, CN-HG700-11, 11s Crankset Shimano Ultegra, FC6800, 53/39T, XS: 165, S: 170, M: 172.5, L-XL: 175 BB FSA EE113, PF30 Reducer Freewheel / Cassette Shimano CS5800, 12-25, 11 Speed Pedals N/A Seatpost FSA SLK Carbon w/20mm Setback, 31.6X350mm Saddle Velo Light-weight Road, CrMo Rail Handlebar FSA Energy Compact, 31.8, XS: 40cm, S-M: 42cm, L-XL: 44cm Stem FSA Energy, 31.8, XS:80mm, S: 90mm, M:100mm, L-XL: 110mm Grips Anti Slip Cushion Tape Brake Levers Shimano Ultegra Brakes Shimano BR-5810 Direct Mount w/Cartridge Pads Color Black Frame Size XS, S, , M, L , XL

Flite 223

Frame CrMo Double Butted, Rear Triangle HT Steel w/Carrier Bosses Rear Shock N/A Fork Hi-Ten Unicrown w/CrMo Steerer Headset Threadless 1-1/8" Rims Weinmann ZAC1800, Dbl/Wall w/CNC Sidewall Hub, Front Formula Alloy QR, 100mm Spacing Hub, Rear Formula Alloy QR, Cassette, 130mm Spacing Tires CST, Recourse, C1808, 700X28C Spokes 14G Black, 28X32 Derailleur, Front Shimano FD-2403 Claris, 28.6mm Derailleur, Rear Shimano RD2400GS Claris Shifters Shimano ST2400 Triple, Claris Chain KMC Z8 w/Missing Link Crankset Shimano FC-A073, 50/39/30, XS: 165mm S: 170mm BB Cartridge Bearing Freewheel / Cassette Shimano HG200-8, 12-32, 8-speed Pedals Wellgo Resin w/Alloy Cage & DU Bearing Seatpost Alloy Micro-adjust, 26.0x350mm Saddle KHS Road Ladies Padded Handlebar Alloy Drop, Compact Bend, 31.8, 38cm Stem Alloy Threadless, 4 Bolt, 31.8, 75mm Grips Cushion Tape Brake Levers Shimano ST2400 Triple, Claris Brakes Promax RC-483 Dual Pivot, Long Reach Color Celeste Frame Size XS, S

2015 KHS TR101

Frame Reynolds 520, Double Butted CrMo
Fork Full CrMo w/ Disc & Rack Bosses
Headset Threadless 1-1/8”
Rims Weinmann SP17 Alloy, Doublewall
Hubs (F/R) Shimano Alivio QR, Cassette rear
Tires Kenda Kwest 700X32c w/ K-Shield Anti-puncture
Spokes 14G Black, 36X36
Derailleur, Front Shimano Sora FD-350, 28.6mm
Derailleur, Rear Shimano Deore, RD-M591
Shifters Shimano ST-R350/353, 9-speed
Chain KMC X9 w/Missing Link
Crankset Shimano FC-R453, 50/39/30, XS-S: 170, M-L: 175
BB Shimano Octalink Cartridge
Cassette Shimano HG20, 11-34T, 9-speed
Pedals Alloy w/Steel Cage & Half Clip
Seatpost KHS Alloy Micro-Adjust, 26.8x350mm
Saddle KHS Ultra Comfort, Soft Shell
Handlebar Alloy Butted, 31.8, XS-M: 42cm, L: 44cm
Stem Alloy 3D Forged, Threadless 4-Bolt, 31.8mm, XS-S: 90mm, M-L: 100mm
Handlebar Tape Cushion Tape
Brake Levers Shimano ST-R353
Brakes Bengal MB700T Cable Disc, 160mm rotors
Color Dark Blue
Frame Size XS, S, M, L
Extras Plastic Fenders, Rear Carrier
Previous

Comments are closed.
